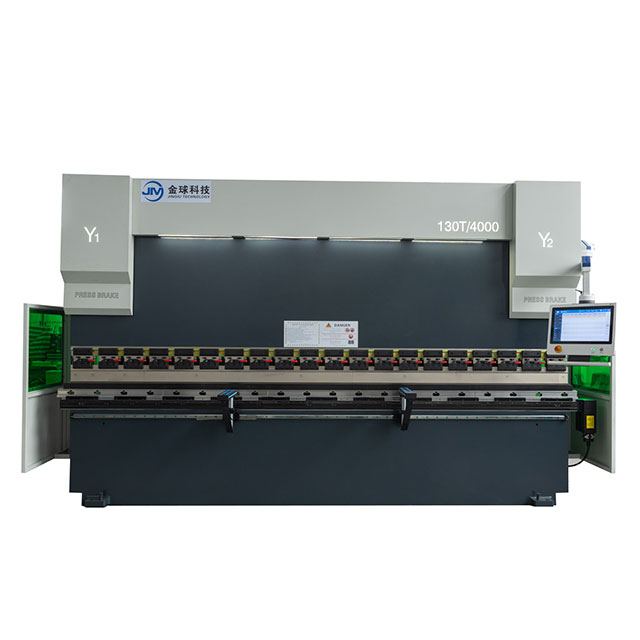

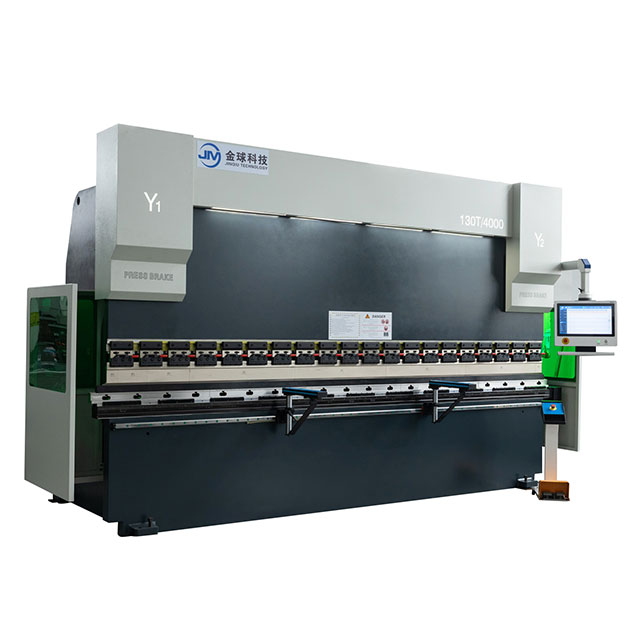

Jinqiu Technology PBS-130/4000 is a self-developed and manufactured 4+1 axis CNC press brake with dual-direction servo pump control, designed for high-end sheet metal processing. Adopting an advanced EHPU servo pump system, it saves up to 70% energy, runs with low noise and low oil temperature, and supports stable 16-hour continuous operation to reduce production cost. The machine is equipped with high-precision absolute encoders on all axes, realizing power-off position memory, zero return-free startup and long-term stable accuracy. With 1300KN nominal pressure, 4000mm working table, MT19 CNC system and Y1/Y2/X/R/V 5-axis control, the slider repetition accuracy reaches ±0.01mm. The automatic deflection compensation and linear guide front support arms ensure stable and flexible bending for long sheets. Built with rigid frame, reliable hydraulic parts, SKF seals and HIWIN ball screws, the press brake features outstanding durability. It is widely used in bending chassis, elevator panels, engineering machinery, stainless steel decoration and auto parts, representing high efficiency, energy saving and reliability made by Jinqiu Technology.

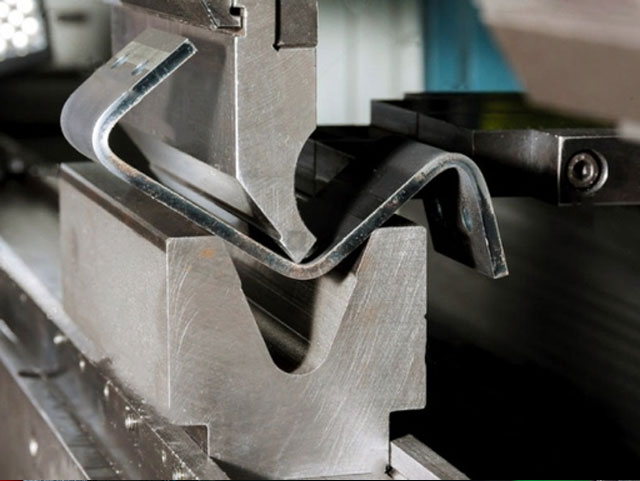

This CNC press brake is widely used for bending various metal sheets such as carbon steel, stainless steel, aluminum, and galvanized sheets into diverse shapes like V-shape, U-shape, box-type, and special-shaped structures. It is the ideal equipment for manufacturing electrical cabinets, chassis, elevator panels, kitchen and bathroom cabinets, door and window frames, lighting brackets, ventilation ducts, and shelf columns. It is also widely applied in automotive parts, engineering machinery, medical devices, fitness equipment, security equipment, high-end metal decoration, building curtain walls, and household appliance shells. With high precision and stability, it fully meets the mass production and high-quality forming requirements of sheet metal parts in different industries.

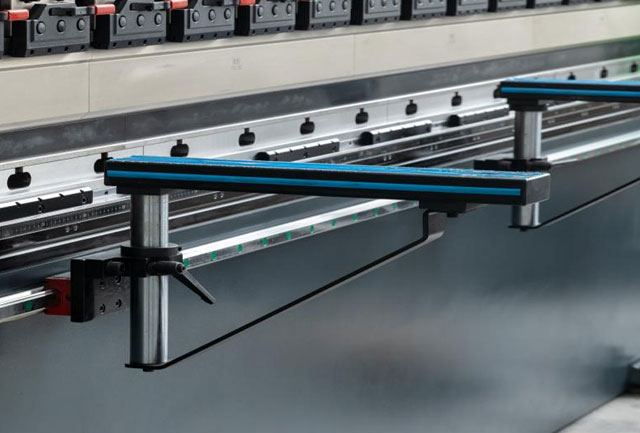

Front support arm equipped with linear guide rails for smooth and flexible movement.

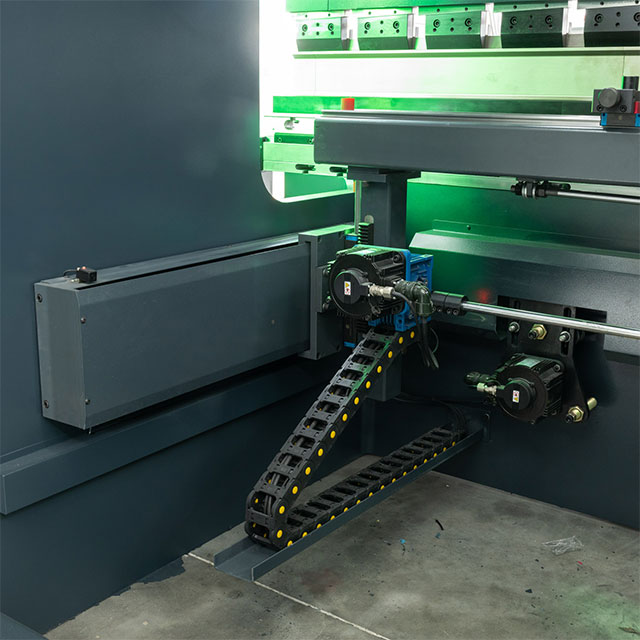

The back gauge adopts dual linear guide rails to enhance transmission stability and improve bending accuracy. It is also equipped with a sheet metal cover to prevent accidental contact with workpieces or other objects, reduce damage, and extend service life.

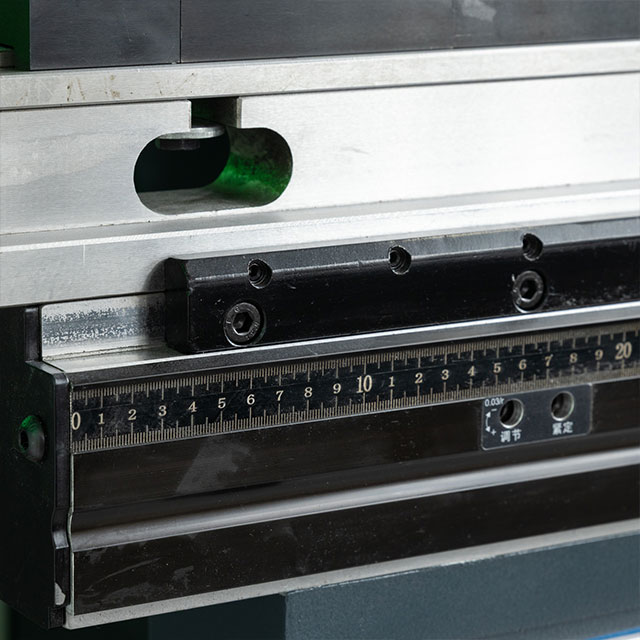

The deflection compensation adopts a bidirectional integral crowning bar structure with an internally maintenance-free design for life. It allows independent compensation at any single point both longitudinally and transversely, effectively ensuring bending angle accuracy and straightness.

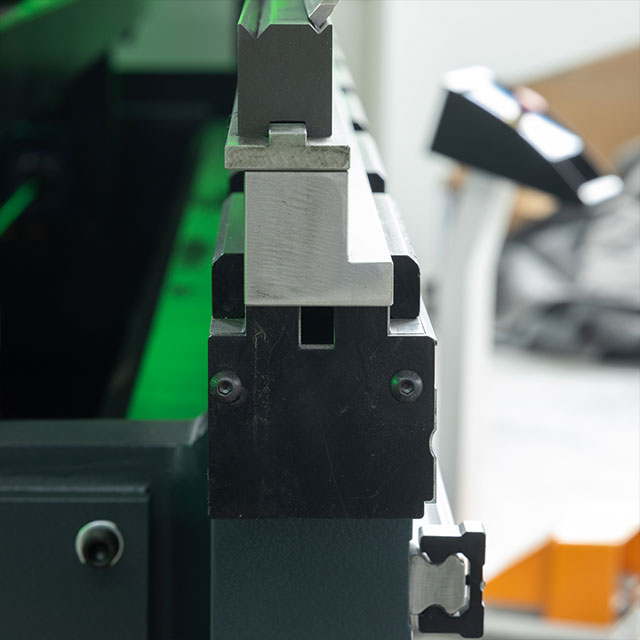

The compensation table is equipped with a central groove, which can accommodate not only double-V lower dies but also single-V lower dies. This avoids workpiece interference and further improves bending precision.

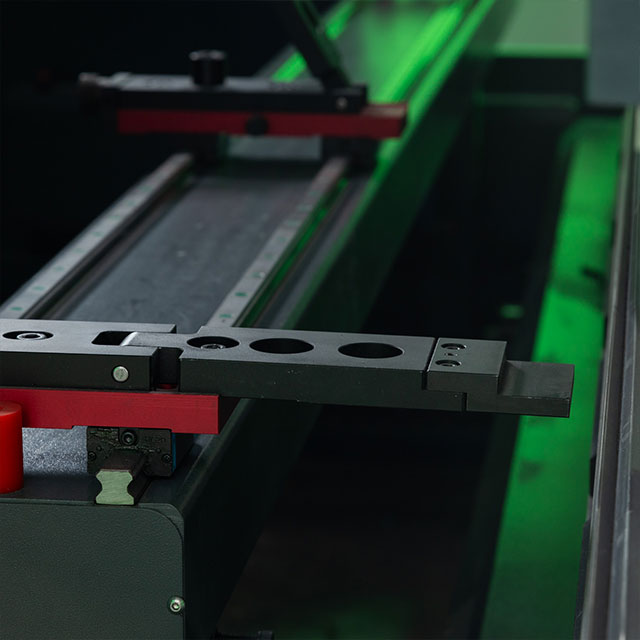

Aluminum fingers: light operation, low deformation.

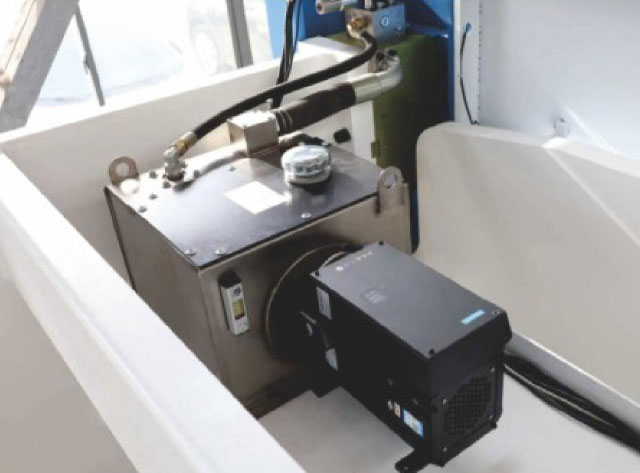

Hydraulic system adopts dual servo pump control structure, which reduces oil consumption, lowers oil temperature, improves response frequency and bending speed, and enhances working efficiency.
